KALTENBACH KKS 401 NA 2000 Retrofit

Kaltenbach KKS 401 NA 2000 Retrofit

Model: KKS 401 NA
Year of Overhaul: 2021

Retrofit: Complete overhaul in 2021 including electrics, controls, drives; all components new.

Saw motor: 5.5 kW, frequency-controlled
Saw blade speed: 20–76 rpm
Cutting speed, saw blade (400 mm): 25–96 m/min

Working range round: 135 mm
gMax. working range square: 130 x 130 mm
Max. working range rectangular: 230 x 80 mm

Kaltenbach KKS 401: Mitre angle adjustment, NC-controlled

Kaltenbach RKS 451/ KKS 401 Infeed Extension: 2000 mm
Extended infeed length for efficient processing of especially long sections.

Flat magazine for 6 m steel materials, 6x2 m
- For preloading of round, square, and profile material
- System layout for material up to 200 mm width (compartment width adjustable)
- Material feed via chain conveyor with loadable compartments
- Material separation via magazine compartments
- Fully automatic feed control with Siemens PLC, saw-integrated
- Manual material alignment in the magazine
- Max. magazine capacity: 2.0 tons
- Material loading possible from the front side
- Safety enclosure using light barrier
- Total length approx. 7.5 m
- Total width approx. 2.5 m

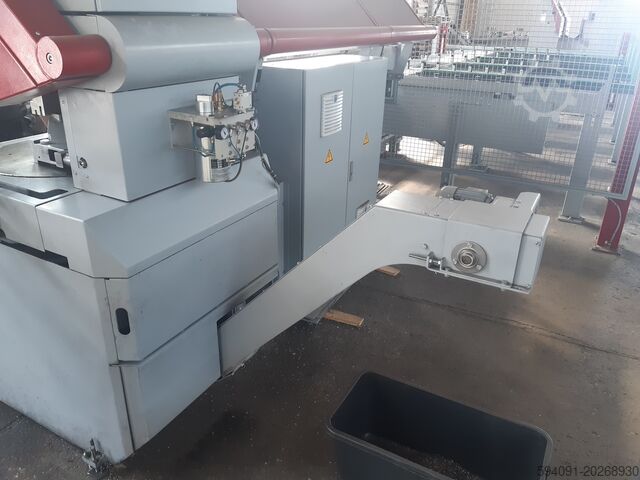

Kaltenbach RKS 451/ KKS 401 Chip Conveyor

Minimum quantity lubrication by Menzel, plus recirculating coolant with integrated pump
- Switchable via machine settings between minimum quantity and recirculating lubrication

Remote maintenance module, machine access interface, and update capability via remote maintenance by Lupberger Systemlösungen OHG

Prepared for discharge system installation
- Hardware provision for future discharge system integration

Saw cycle control
- Operator-controlled cycle sequence
- Input via HMI surface for full bar
- Material retrieval (with trim flap or magazine option)
Gkodpsxmv Rcjfx Ad Hjc
- Relative positioning
- Absolute positioning
- Absolute cutting with mitre selection (with NC mitre adjustment & pusher feed option)
- Relative cutting with mitre selection (with NC mitre adjustment option)
- Wiper function (with wiper arm & scrap removal option)
- Front material discharge
- Discharge via flap (with pusher feed & flap option)
- Repetitions
- Program end

Fully functional, very good overall condition.

Price: On request, plus VAT. (No warranty)
