Μηχανή χύτευσης με έγχυση

KraussMaffei KM 300-1000 CX

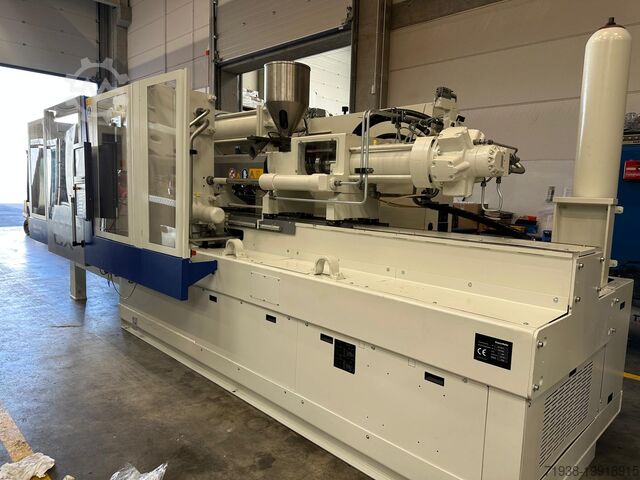

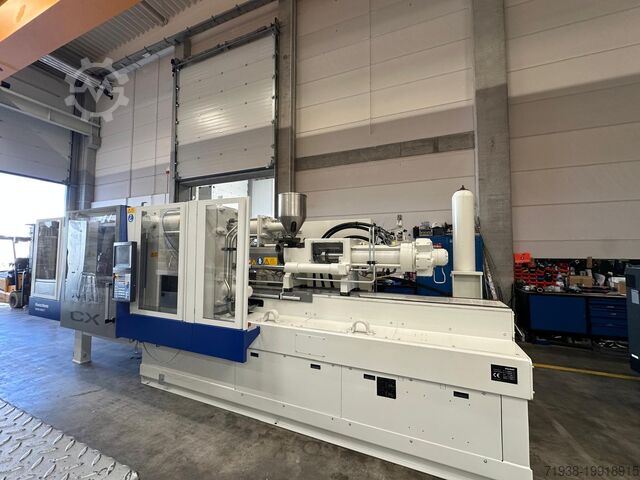

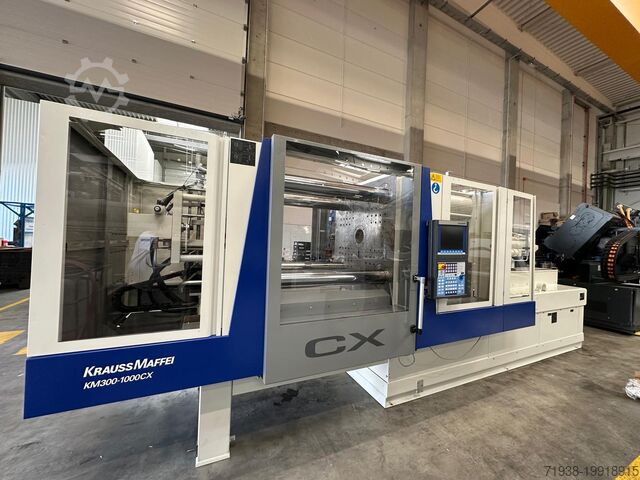

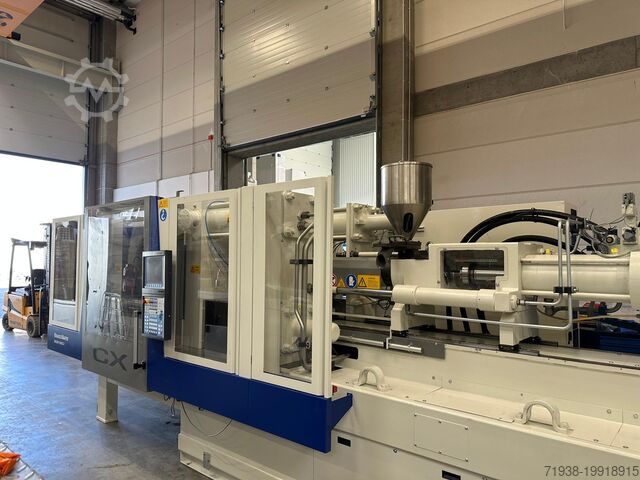

Krauss Maffei Injection Moulding Machine KM 300-1000 CX

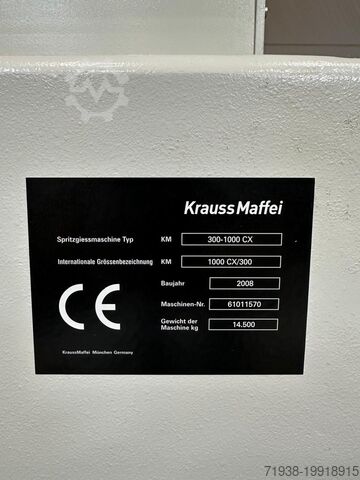

Year of manufacture: 2008
Manufacturer: Krauss Maffei
Control system: MC 5 with color monitor, integrated control panel and disk drive station
Clamping system: fully hydraulic

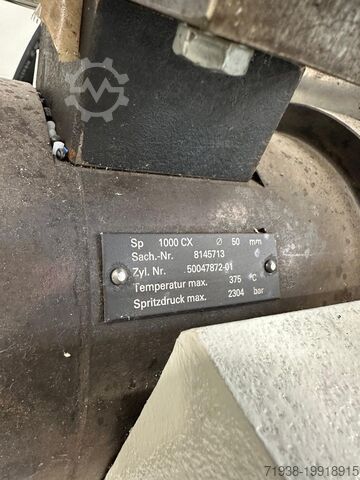

Plasticizing unit SP 1000

Screw diameter: 50 mm
Bsdpfxow U Rcds Aacolp

Non-return valve, open nozzle

Nozzle radius: 15 mm, orifice: 3 mm

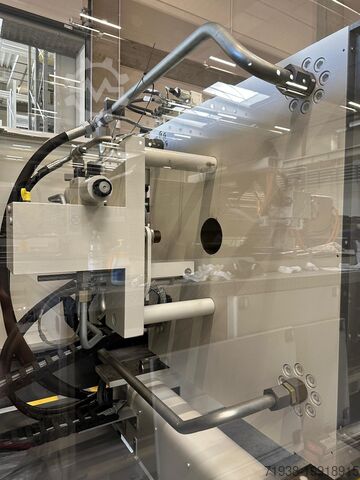

Clamping unit

Clamping force: 3000 kN

Opening force: 169 kN

Platen dimensions (h × v): 995 × 1050 mm

Tie bar spacing: 630 × 630 mm

Mould opening stroke: 820 mm

Minimum mould height: 330 mm

Max. daylight opening: 1150 mm

Ejector stroke: 200 mm

Ejector force (forward/backward): 58 / 28 kN

Injection unit

Screw diameter: 50 mm

L/D ratio: 22.0

Injection pressure: 2304 bar

Shot volume: 432 cm³

Shot weight (PS): 393 g

Injection speed: 170 mm/s

Injection rate: 334 cm³/s

Screw speed (standard): 370 rpm

Plasticizing throughput (at standard speed): 54.3 g/s

Electrical-hydraulic equipment

Pump motor power: 45 kW

Heater power: 18.7 kW

Number of heating zones: 5

Dry cycle time / stroke according to Euromap 6: 2.8 s / 441 mm

Oil tank capacity: 720 l

Dimensions and weight

Net weight (with control cabinet): 12.5 t

Dimensions (L × W × H): 6.11 × 2.17 × 2.25 m
