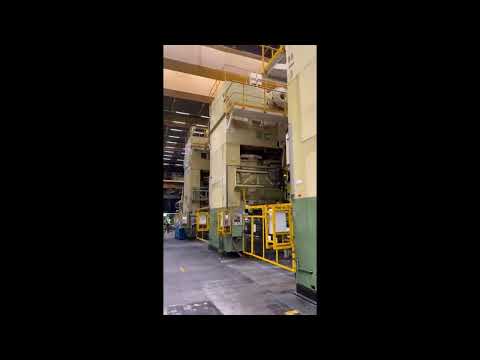

γραμμή πρέσας

Weingarten/Schuler 1x ZS1600.48 & 3x P4E2 SQB 1000 & 1xDPQV4-1000

Technical Details:

Total Nominal Force: 1,000 t
Clamping Area (left-right): x mm
Clamping Area (front-back): x mm
Table Area: 4,500 x 2,400 mm
Total Nominal Force: 2-3-4-5- Press - 1,000 t
Table Area: 2-3-4-5- Press 4,500 x 2,200 mm

Last overhaul in 2021, composed of:

Blank automation, mfd. by Neuhäuser, type 19711505-00, year 2000, SN 367080, material no. FK35835, with integrated blank washing system mfd. by AMTEC, oiler, pallet loading and unloading station, pallet transfer carriage, control system mfd. by Siemens, system no.
Blank gripper, system no. 0608300, mounted on press

Double-column press (MK11165), mfd. by Weingarten, type ZS 1600.48, year 1965,
order no. 324/64, double action, press force approx. 1,000 t, stroke 900 mm, stroke adjustment 350 mm, distance between table surface and slide 2,150 mm, blankholder force 600 t, stroke 700 mm, adjustment 350 mm, clear height between table and blankholder 1,940 mm, max. drawing depth 300 mm, strokes per minute: 12, column spacing approx. 5,000 mm, table size approx. 4,500 x 2,400 mm, control system by Siemens, type S7

Blank automation, mfd. by ABB, consisting of: 2 blank grippers, press-mounted, system nos. 0608400, 0608500, blank turning and tilting station, mfd. by ABB, movable, system no.

Double-column press (MK11166), mfd. by Schuler, type P4E2 SQB 1000/4.5/0.7,
single action, press force approx. 1,000 t, slide stroke 700 mm, slide adjustment 400 mm, strokes per minute: 14, spacing between uprights 4,560 mm, table size 4,500 x 2,200 mm, slide size 4,500 x 2,200 mm, distance table surface to slide surface 1,550 mm, drawing mechanism 300 t, stroke 250 mm, system no. 0186200, control by Siemens, type S7

Blank automation, mfd. by ABB, consisting of: 2 blank grippers, system nos. 0608600, 0608700, with movable stacking and turning table, system no.

Double-column press (MK11167), mfd. by Schuler, type P4E2 SQB 1000/4.5/0.7,
single action, press force 1,000 t, slide stroke 700 mm, spacing between uprights 4,560 mm, slide adjustment 400 mm, strokes per minute: 14, table surface 4,500 x 2,200 mm, slide surface 4,500 x 2,200 mm, distance table to slide surface 1,550 mm, system no. 0186300, control by Siemens, type S7

Blank automation, mfd. by ABB, consisting of: 2 blank grippers, press-mounted, system nos. 0608800, 0608900, with blank stacking and turning table, system no.

Double-column press (MK11168), mfd. by Schuler, type P4E2 SQB 1000/4.5/0.7,
single action, press force 1,000 t, slide stroke 700 mm, spacing between uprights 4,560 mm, slide adjustment 400 mm, strokes per minute: 14, table surface 4,500 x 2,200 mm, slide surface 4,500 x 2,200 mm, distance table to slide surface 1,550 mm, system nos. 0186300, 0186400, control by Siemens, type S7

Press automation, mfd. by ABB, consisting of: 2 blank grippers, press-mounted, system nos. 0609000, 0609100, with blank stacking and turning table, system no.

Double-column press, mfd. by Krup, type DPQV4-1000, SN 2602, year 1968,
single action, press force 1,000 t, slide adjustment 400 mm, slide stroke 700 mm, strokes per minute: 14, distance between table and slide surface 1,550 mm, upright spacing 4,560 mm, table surface 4,560 x 2,200 mm, slide surface 4,560 x 2,200 mm, main drive 140 kW, year 1968, system no. 0186500.
