Δεξαμενή πίεσης 3500 λίτρων με δυνατότητα θέρμανσης/ψύξης, Aisi 304

Iaeg 7733

Location: Bremen
Condition: used
Volume: 3,500 liters
Vacuum: 1.00 bar
Max. overpressure: 4.00 bar
Tank

Max. operating temperature vessel / °C: 120 °C

Design: vertical
Tank

Support type: feet
Number of feet: 4 pcs

Heating/Cooling: available
Double jacket volume: 320.0 liters
Max. permissible operating overpressure: 4.0 bar
Max. permissible operating temperature: 15 °C
Cylinder temperature control: double jacket
Heating/Cooling Jacket

Bottom temperature control: double jacket

Internal diameter: 1,580 mm
External diameter: 1,660 mm
Cylindrical height: 1,700 mm
Total height: 4,550 mm
Nameplate:
Equipment: crane lugs
Equipment

Outlet: flange DN50
Note: light residues

Remarks: Armaflex insulation on the lid and the upper cylinder area (see photos)
Last application: chemical industry
Product-contact material: Stainless steel V2A 1.4541 (AISI321)
Material properties

Ksdpfxjxqa Uyo Ad Henc
Temperature control system material: Stainless steel V2A 1.4541 (AISI304)
Feet material: steel

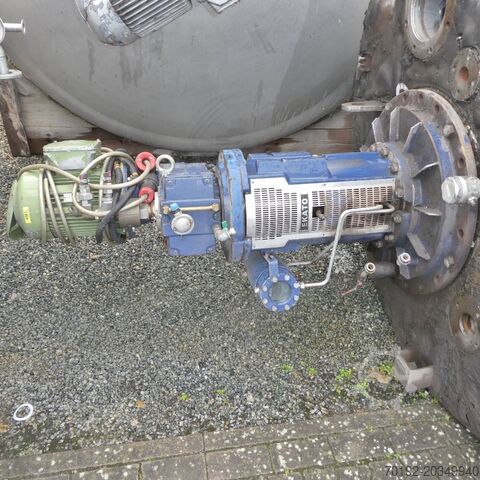

Agitator

Agitator manufacturer: Ekato

Power: 6.8 kW
Speed: 395 rpm

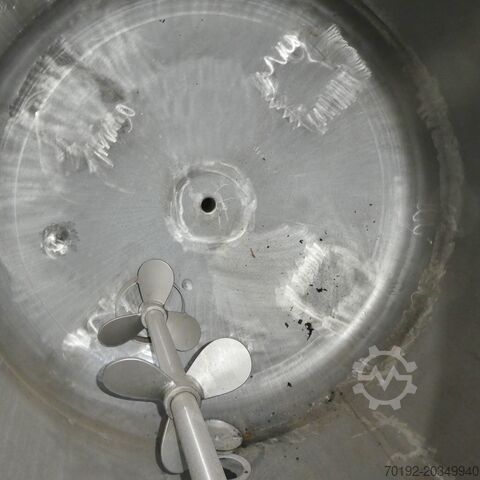

Agitator type: propeller
Mechanical seal: mechanical seal with thermosiphon vessel
Agitator

Voltage: 400/690 V

Explosion protection: The motor is explosion-proof (compliance with the applicable ATEX directives under local conditions must be verified)
Agitator

Agitator arrangement: eccentrically mounted in top head
Agitator features: protective cover over motor housing is bent
