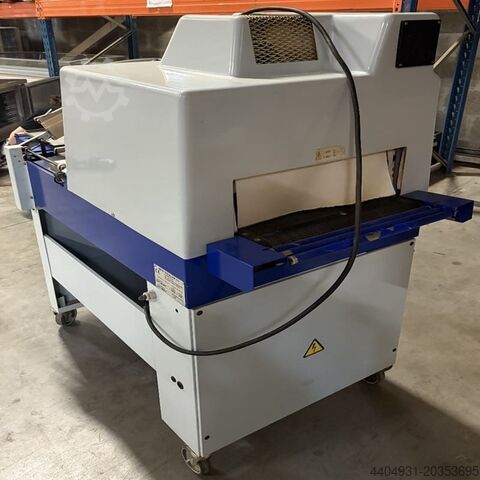

SFERE Emballage Pack 40.50

- Dimensions (L x l x H): 750 x 1520 x 1430 mm
Dodoxqfy Uopfx Ag Dowf
- Year: 2006
- Serial number: 1992
- Feed height from floor: 830 mm
- Sealing frame - Longitudinal arm: 390 mm
- Sealing frame - Transverse arm: 490 mm
- Noise level: 60 dB
- Power consumption in standby (eco mode): 0.3 kW/h
- Power consumption for 150 packs/hour: 1.5 kW/h
- Maximum consumable height: 180 mm
- Maximum consumable weight: 10 kg
- Maximum consumable roll diameter: 260 mm
- Maximum roll width: 550 mm
- Compatible films: PVC, polyolefin
- Voltage: 230 V

ADVANTAGES
- 2 standard available operating modes
- Variable speed: forward/reverse or continuous

- Shielded heating elements
- Arranged in a circle around the fan for even shrinkage

- Powerful and balanced ventilation
- Ensures efficient heat transfer to the film, allowing all film types to shrink at lower temperatures and with shorter exposure times

- Simultaneous Adjustment
- Simultaneous adjustment of unloading table and tunnel conveyor height according to pack size: no height difference, better shrinkage, and energy savings

- Quiet Operation
- Latest-generation timed electric motor with low noise level

EQUIPMENT
- Product is placed on a fixed transfer plate
- 2 electromagnets hold the frame during the sealing operation
- At the end of sealing, the operator pushes the pack onto the tunnel conveyor, which runs at adjustable speed
- The pack moves through the tunnel to the exit
- Features focused on operator comfort and workstation ergonomics
- Adjustable film support depth and infeed table
- 2 standard available operating modes: FORWARD/REVERSE or CONTINUOUS with VARIABLE SPEED
- Tunnel conveyor belt height adjustment
- Used film collection tray
- Mobile unit on casters
- Permanent heat and impulse adjustable sealing device
- Electronic thermostat controls tunnel temperature to within +/- 2°C
- Timed heating and ventilation for the tunnel
- Conveyor belt made of PTFE mesh with guide, mesh size 5 x 5 mm, speed adjustable by frequency inverter
- Conveyor belt height adjustable via handwheel for optimal shrink results (no height difference)
