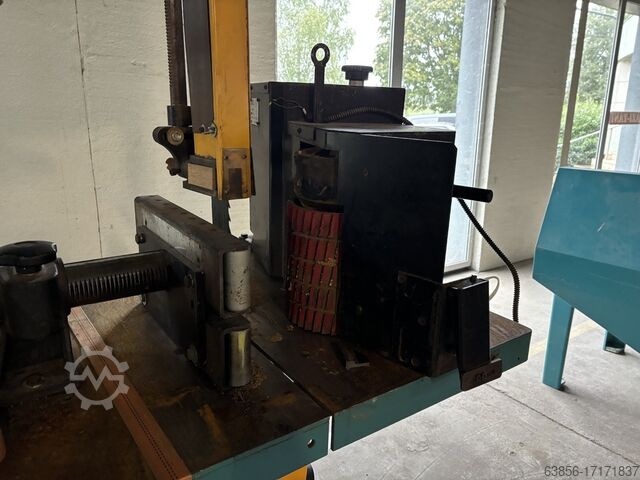

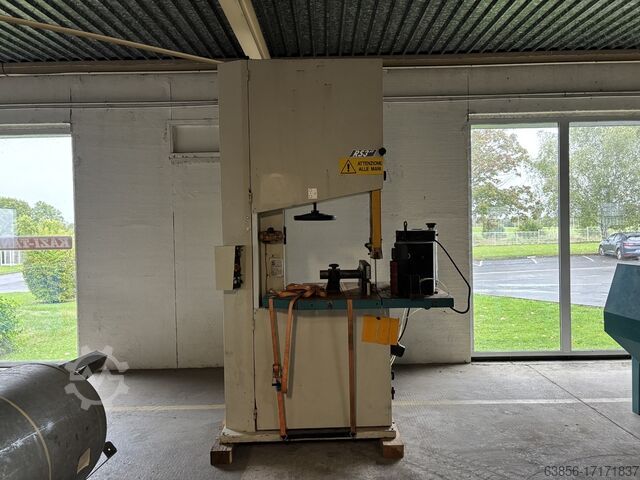

Πριονοκορδέλα

ACM ACM BS 940 RS 3

Κατάσταση: καλή (μεταχειρισμένη), Έτος κατασκευής: 2006, αριθμός μηχανήματος/οχήματος: 108111, Λειτουργικότητα: πλήρως λειτουργικό, πλάτος εργασίας: 240 χιλ., ύψος πλανίσματος: 160 χιλ., ύψος εργασίας: 180 χιλ., Πλάνη τεσσάρων πλευρών μετά το σέρβις, βάρος μηχανής: 3.900 kg Kdsdevrq U Depfx Afnsi

Κατάσταση: μεταχειρισμένο, Έτος κατασκευής: 2000, Number of spindles: 6 units Working width: 230 mm Planing height: 120 mm Infeed table length: 2500 + 500 mm Feed motor: 3 kW Feed speed: 6–36 m/min WEINIG Planer and Moulder Unimat 23 E 6 spindles (including 2 x right), high-performance motors, EM 11 infeed magazine optional Working width: 20–230 mm Working height: 8–120 mm 1st spindle bottom: 7.5 kW ----- Diameter: 40 mm Speed: 6000 rpm Tool swing diameter: 125–180 mm Rebate device Hardened infeed table insert before 1st bottom spindle 2nd spindle right: 11.0 kW ----- Shared motor with left vertical spindle Diameter: 40 mm Speed: 6000 rpm Tool swing diameter: 112–250 mm Max. tool diameter behind fence: 203 mm Max. profiling depth: 35 mm Axial adjustment travel: 80 mm 3rd spindle left ----- Shared motor with 2nd spindle Diameter: 40 mm Speed: 6000 rpm Tool swing diameter: 112–200 mm Max. profiling depth: 35 mm Axial adjustment travel: 80 mm Pressure shoe before left spindle, incl. side pressure roller, spring-loaded 4th spindle right: 7.5 kW ----- Diameter: 40 mm Speed: 6000 rpm Tool swing diameter: 112–250 mm Max. tool diameter behind fence: 203 mm Max. profiling depth: 35 mm Axial adjustment travel: 80 mm 5th spindle top: 11.0 kW ----- Diameter: 40 mm Speed: 6000 rpm Tool swing diameter: 112–200 mm Max. profiling depth: 35 mm Axial adjustment travel: 45 mm Divided pressure shoe before top spindle, adjustable to tool swing diameter and pivotable away from tool, spring-loaded 6th spindle bottom: 7.5 kW ----- Diameter: 40 mm Speed: 6000 rpm Tool swing diameter: 112–250 mm Max. profiling depth: 15 mm Axial adjustment travel: 45 mm Spindles – general ----- All profiling spindles with high concentricity Lubrication points for axial spindle movement Vertical spindle length: 170 mm Feed system ----- Motor with mechanical brake, 3 kW Mechanical feed, steplessly adjustable 6–36 m/min Infeed roller before 1st bottom tool, pneumatically height-adjusted Durofer pointed tooth rollers (Weinig patent) with depth limiter and self-cleaning Axial adjustment of feed rollers opposite left spindle: 35 mm Extension of pendulum axle opposite to left spindles up to 150 mm Machine electrics ----- Operating voltage: 380–400–415 Volt, 50 Hz Machine bed, tables and fences ----- Kjdpfxjwqr Rvj Afnsdi Infeed table 2.5 m long (incl. jointer fence) Aluminum extension 0.5 m for infeed table, incl. fence extension Manual Waxilit pump for table resin removal One driven rubber roller (spring-loaded in outfeed table) Pressure elements and guides ----- Top pressure rollers, pneumatically loaded Top pressure rollers can be pivoted away, opposite right spindles, for easy tool change Machine operation ----- Pressure shoe before top spindle with mechanical digital readout Outfeed after top spindle with mechanical digital readout ATS/E system, automatic 2-axis positioning for spindles No. 3 and 4 Min. working height 12 mm Electric height adjustment for top spindles and feed system Centralized lubrication points accessible from machine front Safety and noise protection -----...
