οριζόντιο κέντρο κατεργασίας

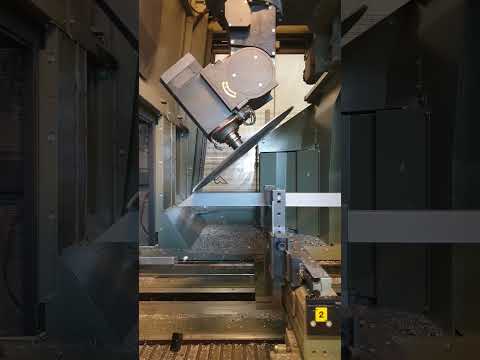

Emmegi Satellite XT

Axis travel distances
X-AXIS (longitudinal): 7,800 mm
Y-AXIS (transverse): 1,100 mm
Z-AXIS (vertical): 655 mm
B-AXIS (vertical-horizontal rotation of the unit): 0° to 90°
C-AXIS (vertical rotation of the unit): 0° to 360°

Traverse speed
X-AXIS: 75 m/min
Y-AXIS: 60 m/min
Z-AXIS: 40 m/min
B-AXIS: 3,240 °/min
C-AXIS: 3,600 °/min

Axis acceleration
X-AXIS: 3 m/sec²
Y-AXIS: 3 m/sec²
Z-AXIS: 2 m/sec²

Motor spindle
Max. power (S1): 15 kW
Max. speed: 24,000 rpm
Max. torque: 12 Nm
Tool holder: HSK – 63F
Spindle encoder for rigid tapping
Water cooling with chiller unit

Automatic tool changer
Standard for 16 tools
Maximum permissible tool size in standard magazine:
Ø = 80 mm, L = 300 mm
Maximum permissible saw blade size in standard magazine:
Ø = 180 mm, L = 150 mm
Saw blade magazine for max. saw blade:
Ø = 500 mm, L = 73 mm

Machinable profile sides
With tool without angle head (profile top, side faces, end faces): 5
With saw blade, Ø = 500 mm (profile top, side faces, end faces): 1 + 2 + 2

Tapping performance (with tap on aluminium and through-hole)
Rigid tapping: M12
Larger threads possible with thread milling cutter
Bdsdpfey Iqr Tox Alnob

Profile feed
2 reference stops with fixed positions

Functions
Dynamic pendulum operation
Overlength machining up to double machine length (X axis)
Cutting and separating the bar (not in 2-bar parallel operation)
Machining in automatic mode: milling and cutting (not in 2-bar parallel operation)

Workpiece clamping
Standard equipment pneumatic clamping elements: versions dynamic and static 7,800/6
Max. number of pneumatic clamps: 12
6 clamps per zone, relocatable across the full machine length
Max. profile width, Y, with standard tool clamping: 550 mm
Motorized clamping device
Absolute measurement of clamp position

Safety and protective devices
Light curtain system for access protection to working area
3-sided metal safety fence
Full enclosure of the machine by safety and soundproof cabin
Internal lighting
Protective cover made of laminated glass

Machine structure
Monobloc machine bed of electro-welded and normalized steel
Steel belt chip conveyor, positioned on the right side of the machine

Machining unit
Gantry construction
5-axis controlled spindle, simultaneous interpolation possible
Minimum quantity lubrication unit (oil)
Central lubrication system for guides

Operation and control
Control cabinet with cooling system
Pneumatic control cabinet
Real-time CNC control
MG-Pilot

Industrial PC with touch screen
Atom 1600 processor
15" LCD-TFT colour display
Keyboard and mouse
1 GByte RAM
4 GByte Compact Flash card
4 USB ports
RJ45 network card

Software
Microsoft® Windows® Embedded
Bidi-CAM
DRILL

Power supply (Voltage/Phase/Hertz)
400V/3PH/50Hz

Machining centre control software
CAMPLUS for SATELLITE XT, graphical programming software for machining with 3D visualization
SHAPE, software for generating arbitrary 'free' machining contours
