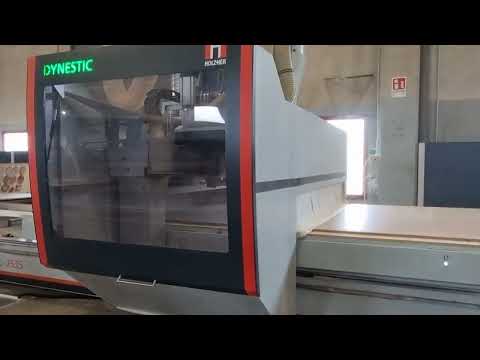

HOLZ-HER DYNESTIC 7535 LIFT

HOLZ-HER DYNESTIC 7535 LIFT – Automatic CNC Nesting Machining Centre

Year of manufacture: 2022
Operating hours: 7,887 h
Availability: October 2026

High-performance CNC nesting machining centre, ideal for processing wood panels, wood-based materials, plastics, and light alloys.
Machine equipped with automatic loading/unloading system with lifting table (LIFT version), designed for high-efficiency industrial production.

Key technical data
- Working area: 4,600 x 2,200 mm
- Axis travel (X-Y-Z): 6,195 x 2,935 x 565 mm
- Passage height (Lift): 250 mm
- Maximum speed:
Vectorial: 128 m/min
Axes: X 80 – Y 100 – Z 25 m/min

Iodpjy D Sp Ejfx Alpstf
Machining unit
- 5-axis HSD electrospindle – 13 kW, up to 24,000 rpm
- Cardanic head: C axis ±360° / A axis ±180°
- Liquid cooling
- ChipControl sensor for spindle protection
- 24-spindle drilling unit with integrated saw blade
- 18 independent vertical spindles
- L-shaped configuration (32 mm pitch)
- 18-position tool magazine (disc type)

Software and control
- Complete CAMPUS V7 Plus CAD/CAM software
- Included modules: NC-HOPS, aCADemy, MT-Manager, Workcenter
- 3D simulation with BetterSim
- Advanced nesting software BetterNest
- File import and intuitive programming
- 21.5” multitouch touchscreen monitor
- Teleservice and remote diagnostics

Worktable and automation
- Nesting table with vacuum system
- Vacuum pumps:
1 x 500 m³/h
1 x 250 m³/h additional
- Automatic LIFT system (AUT 11):
Lifting table 4,200 x 2,200 mm
Panel detection laser
- Automatic loading (AUT 21):
Gantry device with 4 suction cups
- Automatic unloading:
Pusher on column
Unloading table with conveyor belt

Additional equipment
- 2 independent working fields
- Electronic reference stops
- Automatic centralized lubrication
- TouchLabel PRO labelling system
- TouchTool tool measuring system
