Ημιρυμουλκούμενο ανατρεπόμενο

KEMPF SKM 36/3 AK 3-Achs Alu Sattelkipper 50m³

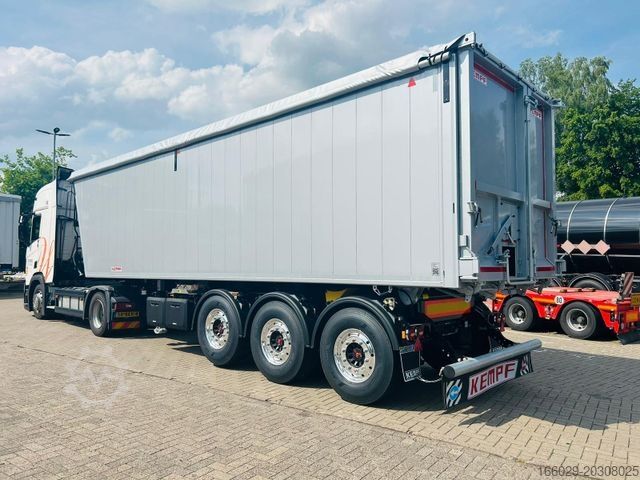

KEMPF SKM 36/3 AK – 3-Axle Aluminium Tipper Semi-Trailer 50m³ – New Vehicle

Estimated delivery: January 2026

--- Vehicle Data

Manufacturer: Fahrzeugbau KEMPF GmbH
* Model: SKM 36/3 AK
* Type: 3-axle tipper semi-trailer with aluminium box body
* Target market: Germany
* Gross permissible weight: 36,000 kg
* Axle load: 3 × 8,000 kg
* Kingpin load: approx. 12,000 kg
* Rated fifth wheel height, loaded: approx. 1,200 mm (technically possible: 1,200–1,260 mm)
* Loading length: approx. 9,000 mm
* Loading width: approx. 2,430 mm
* Body height: approx. 2,300 mm
* Body volume: approx. 50.3 m³
* Overall height: approx. 3,710 mm at loading edge (loaded)

--- Paintwork / Design

* Chassis: Deep black RAL 9005
* Attachments: Hot-dip galvanized and black powder-coated
* Axles and wheel hubs: black (KTL-coated)
* Body: White aluminium RAL 9006
* Tarpaulin: Silver No. 911 (Mehler)
* Contour markings: Side (white) and rear (red) in accordance with EC directives

--- Chassis and Running Gear

* Frame: High-quality welded construction made of fine-grain steel, conical design (approx. 80 mm)
* Axles: SAF INTRADISC plus Integral – Offroad version, disc brakes Ø 430 mm
* Lift axle: 1st axle fully automatic lift, compulsory lowering when unladen
* Air suspension: Air suspension units with small bellows (300 mm), plastic covers
* Air tanks: Aluminium
* Landing gear: 2 aluminium landing legs, max. 24 t (2 × 12 t)
* Mudguards: PVC half-shells with fixed spray suppressor
* Toolboxes: 2 PVC, black, each approx. 660 × 500 × 460 mm
* Side underrun protection: right-hand side
* Ladder: removable, aluminium, approx. 4,000 mm long
* Access ladder: extendable at the rear (not UVV compliant)

--- Rear and Underrun Protection

* Foldable steel underrun protection according to ECE R58.03
* With spring-assisted lifting and integrated towing eye
* Continuous KEMPF mudflap with large reflective panel (200 × 1,130 mm)

--- Lighting and Electrics

* Complete LED configuration conforming to ADR standards
* Position, marker, reverse and rear fog lamps in LED
* 2 LED work lights (left/right)
* Interior load area lighting with switch and pilot light
* 15-pin electrical connector
* Round lights with chrome trim
* Without reversing camera

--- Tyres and Wheels

* Rims: Alcoa Ultra ONE aluminium wheels, Dura-Bright EVO, ET 120
* Tires: 385/65 R 22.5, manufacturer of Kempf’s choice
Hfsdpfx Adsxn Eb He Hsn

--- Brake System and Safety

* Electronic braking system (EBS) Wabco with RSS (Roll Stability Support)
* ABS 4-channel (4S/2M)
* Parking brake via spring actuators
* Axle load display via EBS CAN bus (display possible in driver’s cab)
* Trailer Information Module SmartBoard (Wabco)
* Tire pressure monitoring system (TPMS) according to ECE R141

--- Hydraulics

* Hydraulic front tipping cylinder (Hyva), operating pressure 190 bar, single-circuit hydraulic system
* Smallest piston hard-chromed
* Hydraulic connection: Edbro 1" quick-release coupling, screwed

--- Body/Box

* Aluminium rear tipper body made of hollow profiles
* Front wall: 20° inclined, approx. 5 mm thick, with reinforced supports for front press
* Floor: approx. 7 mm thick, annealed aluminium
* Side walls: aluminium hollow profiles, continuous 2.5 mm internal wall, welded

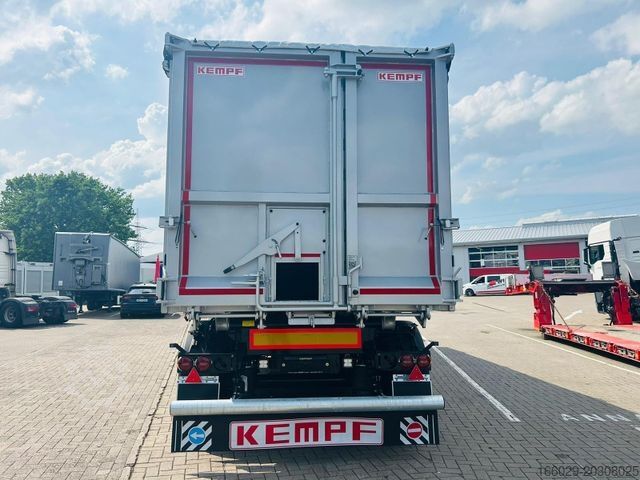

* Rear wall: straight, pendulum-mounted, two-wing (2/3 left, 1/3 right), automatic-pneumatic locking
* Rear wall operation: left switch (pendulum function), right switch (door function)
* Grain-tight construction
* Shutter: approx. 400 × 400 mm, lever operation to the left
