Ημιρυμουλκούμενο ανατρεπόμενο

KEMPF SKM 36/3 SR-Membran Stahl Halbrundmulde 50m³

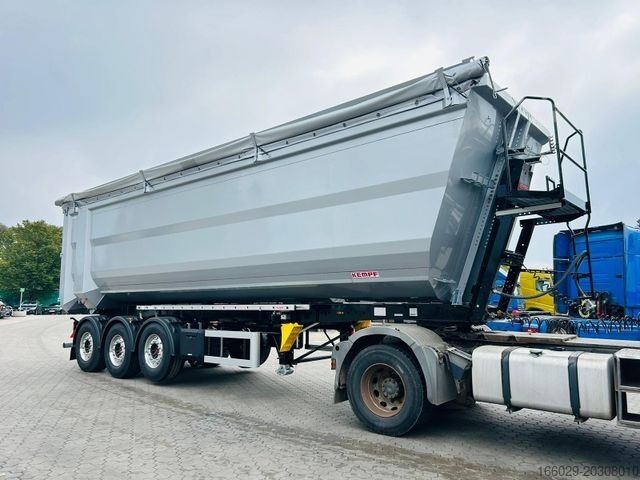

KEMPF 3-axle semi-trailer tipper SKM 36/3 SR-Membrane | Steel half-pipe body (50.4 m³) | New vehicle
Availability: Expected February 2026

----Technical Data
Type: KEMPF SKM 36/3 SR-Membrane
* Design: 3-axle semi-trailer tipper with steel half-pipe body
* Permissible gross weight: 36,000 kg
* Axle load: 3 x 8,000 kg
* Fifth-wheel load: approx. 12,000 kg
* Loading length: approx. 9,500 mm
* Loading width: approx. 2,350 mm
* Body height: approx. 2,400 mm
* Body volume: approx. 50.4 m³
* Overall height: approx. 3,830 mm to loading edge (loaded)
* Nominal saddle height: approx. 1,200 mm (technically 1,200–1,260 mm)
----Body / Trough

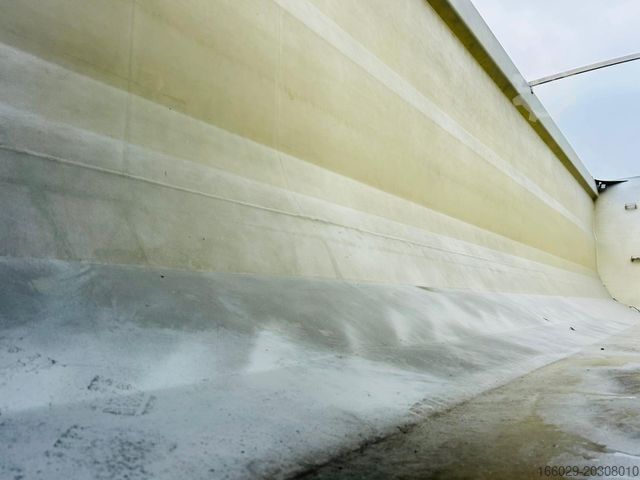

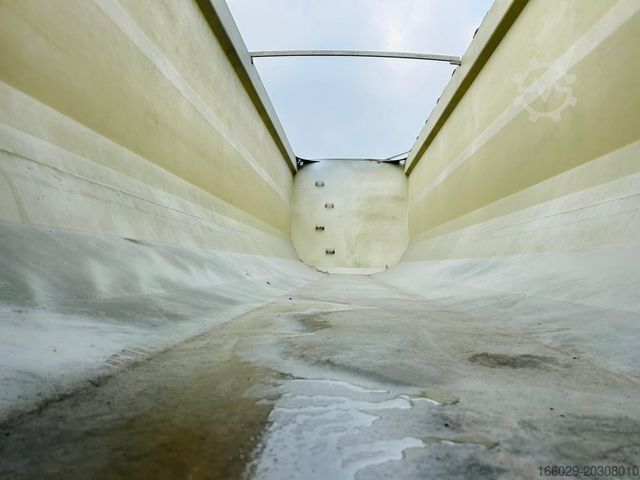

Steel half-pipe body in robust off-road design
* Material: highly wear-resistant HARDOX steel (HB 450 / HB 500)
* Floor: full-length 5 mm HARDOX steel, reinforced
* Side walls: 4 mm HARDOX steel
* Front wall: angled 20°, 4 mm HARDOX steel
* Rear wall: double-wing (1/3 left, 2/3 right), grain-tight, with pneumatic two-hook locking system and integrated slide gate (400 x 400 mm)
* Cover plate: removable, protects slider from dirt and damage
* Air vibrator: rear left, operable by switch
* Catwalk with ladder and railing per UVV regulations
* Interior access via step system in front wall
* Shovel and broom holder mounted on front wall
----Chassis and Superstructure
KEMPF welded construction made of high-tensile fine-grained steel, sand-blasted and hot-dip galvanized
* Off-road version, conically tapered
* Chassis color: Jet black (RAL 9005)
* Body color: White aluminium (RAL 9006)
Hfedpfxsxn Ebmo Ad Hsn
* Tarpaulin color: Silver (Mehler 911)
* Attachments: hot-dip galvanized and black powder-coated
* Robust, high-quality overall construction
----Axles, Tyres, and Suspension
SAF INTRADISC plus Integral off-road axles with disc brakes (Ø 430 mm)
* Axle as automatic lift axle with forced lowering
* Tyres: 385/65 R 22.5 (brand at Kempf's discretion)
* Rims: Alcoa Ultra ONE aluminium rims, Dura-Bright EVO
* Air suspension system with lifting/lowering function and quick venting
* Load gauge with tonne display, front left
* Chassis laser aligned (optimized tire wear and fuel consumption)
----Hydraulics and Tipping System
Front tipping cylinder Hyva, single-circuit hydraulic system (190–250 bar)
* Edbro 1" quick-release coupling, elevated
* Hard-chromed piston, robust design
----Braking and Safety Systems
Knorr EBS with RSP (Roll Stability Program)
* ABS in 4-channel configuration (4S/2M) with brake light supply
* Tire Pressure Monitoring System per ECE R141
* Trailer Info Module (TIM G2) with brake wear indicator and diagnostic data
* Acoustic reverse warning system
* Folding underrun protection according to ECE R58.03 with spring-assisted lifting
----Lighting and Electrics
Complete LED lighting per EC standard, ADR-compliant
* LED triple-chamber rear lights with chrome rings
* LED side marker lights with indicator function
* LED cargo area lighting, operable by switch
* LED reversing lights (2 additional, side-mounted)
* LED rear fog lamp and license plate lighting
* Brake light
* 15-pin socket
----Accessories and Extras
Two PVC toolboxes (each approx. 660 x 500 x 460 mm)

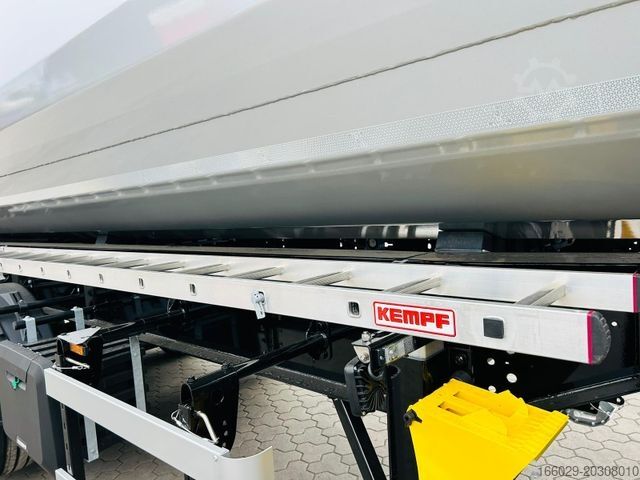

* Removable aluminium ladder (4 m) with bracket
* Two plastic wheel chocks
* Dual-sided side underrun protection according to EC specification
* Folding A-plate at end of chassis
* Large reflective sign (200 x 1,130 mm)
* Mudflaps with spray suppressor

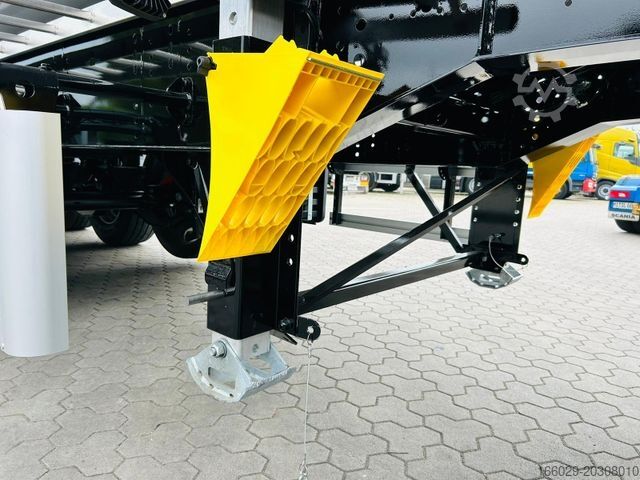

* Two aluminium drop legs (load capacity 24 t)
----Tarpaulin and Bows
Roll tarp made of high-quality PVC (680 g/m²), color sil
