κέντρο κατεργασίας

D.M.A. Machinery CNC-ROUTER D-Line 1632 SWNF

CNC Nesting Gantry Router Panel Saw + Panel Saw up to max. 70mm cutting depth
Hiteco 12 kW HSK63F Air-Cooled Spindle
Multidrill H-V
grooving saw X-Y axis (2 pcs.)

CNC Machining Center

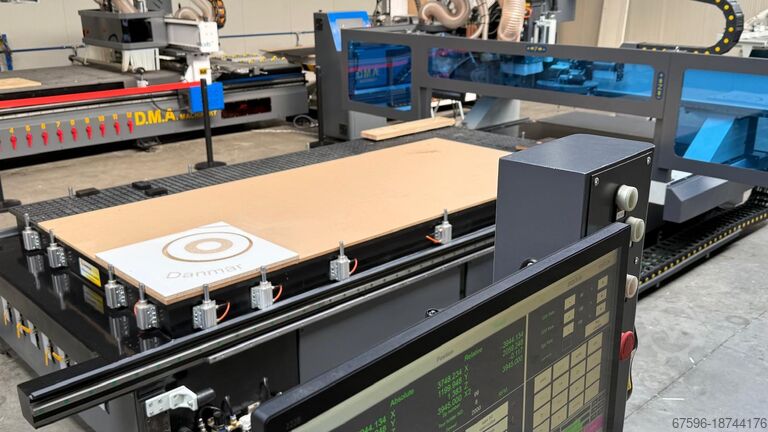

The D-LINE machine is a robust, fast, and versatile machining center offering limitless possibilities for machining operations. It is ideal for processing panels: drilling, trimming, nesting, etc. All operations are performed with high precision, enabled by a powerful numerical control and servomotors overseeing the movement of all axes.

This CNC is equipped with a vertical milling motor for operations in the vertical Z-plane, as well as a complete drilling head with vertical and horizontal drills and a saw for grooving. These work units deliver high precision and flexibility, specifically designed for fast and smooth woodworking and similar material processing.
Bljdpfx Aov Ra Nueacep

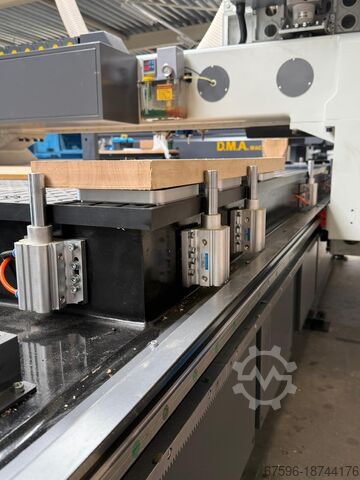

In addition, this machine features a rotary tool changer with 10 positions and suction cups, which can be placed at any point on the table.
- X-axis: 3,200 mm
- Y-axis: 1,600 mm
- Z-axis: 200 mm
- Spindle: 12 kW Hiteco
- Multi-Drill: Yes
- Grooving blade: 1 x X-axis + 1 x Y-axis
- Saw unit: 5.5 kW 350Ø

Transport – Installation – 1-year full service warranty on CadCam – 5-year warranty on the frame – 3-year warranty on linear guides and bearing blocks*

Danmar Machines BV, ALMELO Netherlands
